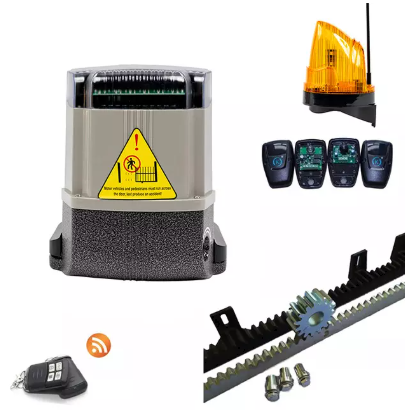

Modern Intelligent AC Smart Gate Motor Automatic Electric Gate Opener Control Board with APP for Villas Minium 500 to Max Load 1600kg Model NO. DCK-658, 668, 678, 688 Structure Gear Driven Driving Type Electromechanical Electric Current Type AC Brand PROTEC TypecAutomatic Door Operators Models- Gate Weight (Kg) 500kg to 1600kg Input Power 120V/220V~240V AC Single-Phase Max. Torque 18nm Rated Power 370W Protection Class IP44 Speed (M/Min) 12m/Min Temperature -45℃~+65℃ Color Gray HS Code 8501310000

Model Number-DCK-23 Warranty 1 Year Power supply AC 120V~240V 50/60Hz Power 200W/250W Max gate weight 600-1000KG Motor speed 1400r/min Travel time 17S Noise ≤56dB Temperature -45℃~+65℃ Protection class IP44 Certificate CE

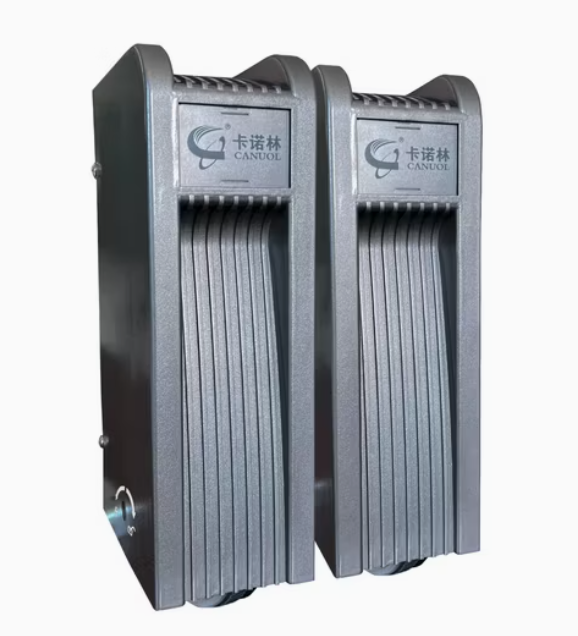

Roller gate motors are used for shutters and rolling gates in shops, garages, and warehouses, providing easy lifting and lowering with strong performance. Model NO. DCK-980 Structure Wheeled Driving Type Hydraulic Electric Current Type DC 1. Safety Voltage: DC 24V. safe voltage for the human body. 2. Single/double door selection: Single doors can operate independently or double doors can operate simultaneously by remote control 3. Button lock: All buttons on the control panel can be locked by remote control operation to prevent theft. 4. Reneated operation restriction: Prevents damage to the gate caused by misoperation when the door is opened too far due to overtravel 5. Abstruction detection: If obstacles such as pedestrians or vehicles are encountered during operation, the door opener will automatically stop to ensure safety. 6. Time protection: The single running time of the motor is set within 90 seconds to ensure the safety of the motor.

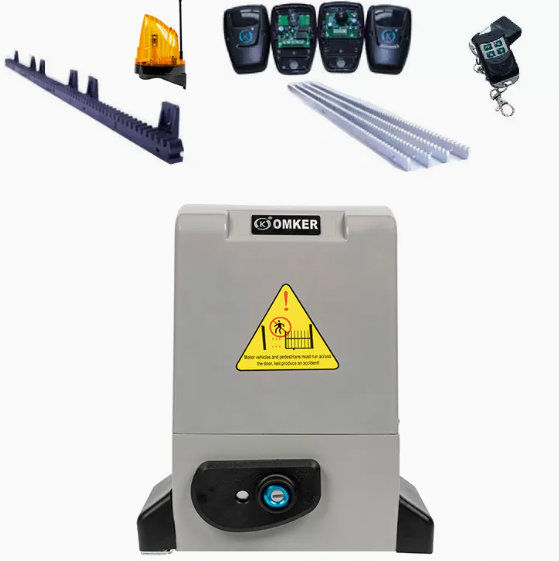

DCK200 Industrial Heavty Type 1, Type 2, Type 3 Input Power 120V/220V~240V AC Single-phase Max. Gate Weight (KG) 3000KG 2500KG 2000KG Max. Torque 65Nm 50Nm 40Nm Rated Power 1200W 900W 750W Protection Class IP44 IP44 IP44 Speed (m/min) 12m/min 12m/min 12m/min Temperature -45°C~+65°C -45°C~+65°C -45°C~+65°C Noise ≤56dB ≤56dB ≤56dB

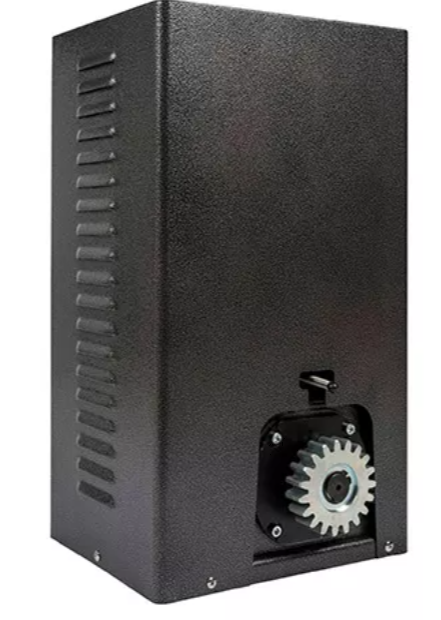

Automatic Heavy Duty Sliding Gate Opener Variable Frequency Variable frequency conversion door motor can use apartment gate opener,110V/220V Frequency conversion motor has large starting torque, is not easy to heat up, and Electric Motor For Slide Door With Remote Control can operate continuously for a long time. Model DCK-198BP, DCK-208BP, DCK-218BP Input Power 110V/220V~240VAC Max gate weight 3000KG Torque 75Nm 90Nm 120Nm Rated Power 1200W 1500W 2000W Speed (m/min) 13~24 Temperature -45°C~+65°C Noise ≤56dB
